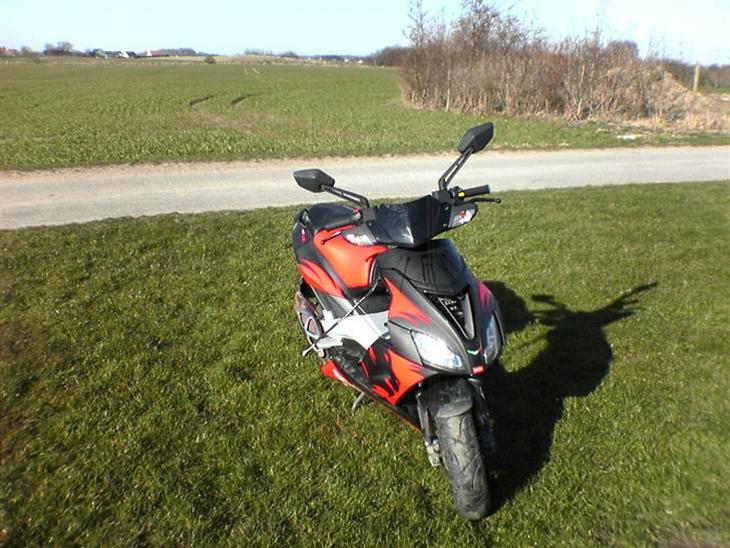

Aprilia Sr50r 2006
905 visninger
|
Oprettet:
Aprilia Sr50r
Årgang:
2006
Motor:
Engine: Liguid cooled horizontal singele cylinder two stroke.
Bore and stroke: 40*39,3mm
Displacement: 49cc
Compression tatio: 12,1:1
Air-ole mix asiration: Reed valve
Carburettor: Dell'Orto Phva 17.5
Ignition: Capacitor Discharge Ignition (CDI)
Starting: Electric
Generator: Flywhell-magneto 70W - 12V
Lubrication: Separate lubrication with mechanical oil pump
Oil tank capacity: 1,2 litre (0,2 litre reserve
Gearbox: Continuas automatic converter
Clutch: Automatic centrifugal dry clutch
Promary drive: V belt
Final drive: Gears in oil bath
Frame: Split single cradæe frame in high tensile streght stell
Front suspension: Hydraulic fork, 90mm wheel travel
Rear suspension: Engine unit acting as swigarm; frame linkages on two radial slient blocj monutings; wheel travel 70mm
Brakes: Front 190mm stainless stell disc; racing calliper with twin opposed 32mm pistons, Rear 190mm stainless stell disc; racing calliper with twin opposed 30mm pistons
Bore and stroke: 40*39,3mm
Displacement: 49cc
Compression tatio: 12,1:1
Air-ole mix asiration: Reed valve
Carburettor: Dell'Orto Phva 17.5
Ignition: Capacitor Discharge Ignition (CDI)
Starting: Electric
Generator: Flywhell-magneto 70W - 12V
Lubrication: Separate lubrication with mechanical oil pump
Oil tank capacity: 1,2 litre (0,2 litre reserve
Gearbox: Continuas automatic converter
Clutch: Automatic centrifugal dry clutch
Promary drive: V belt
Final drive: Gears in oil bath
Frame: Split single cradæe frame in high tensile streght stell
Front suspension: Hydraulic fork, 90mm wheel travel
Rear suspension: Engine unit acting as swigarm; frame linkages on two radial slient blocj monutings; wheel travel 70mm
Brakes: Front 190mm stainless stell disc; racing calliper with twin opposed 32mm pistons, Rear 190mm stainless stell disc; racing calliper with twin opposed 30mm pistons
Hestekræfter
49cc
5,2 hk
45-50Ignition: km/t
5,2 hk
45-50Ignition: km/t
Fælge
Whells: Five spole, light alloy wheels front and rear: 3,50*13'
Dæk
Tyres: Tubeless; front and rear 130/60*13'
Styling
Colours: Speed Orange
Ekstra tilbehør
Bemærkninger
Tank capacity: 7litres
Aprilia Sr50r
jul 2006
Følger: 1 Scootere: 3 Emner: 22 Svar: 41
Savner man aldrig kickstarteren?????
Eller starter den ALTID med el også om vinteren???
sep 2007
Følger: 39 Følgere: 37 Scootere: 3 Emner: 34 Svar: 106
det skal mere meget mere tekst... men der er altid plads til en aprilia.. xD
maj 2007
Følger: 19 Følgere: 22 Scootere: 1 Emner: 12 Svar: 51
ingen tekst
